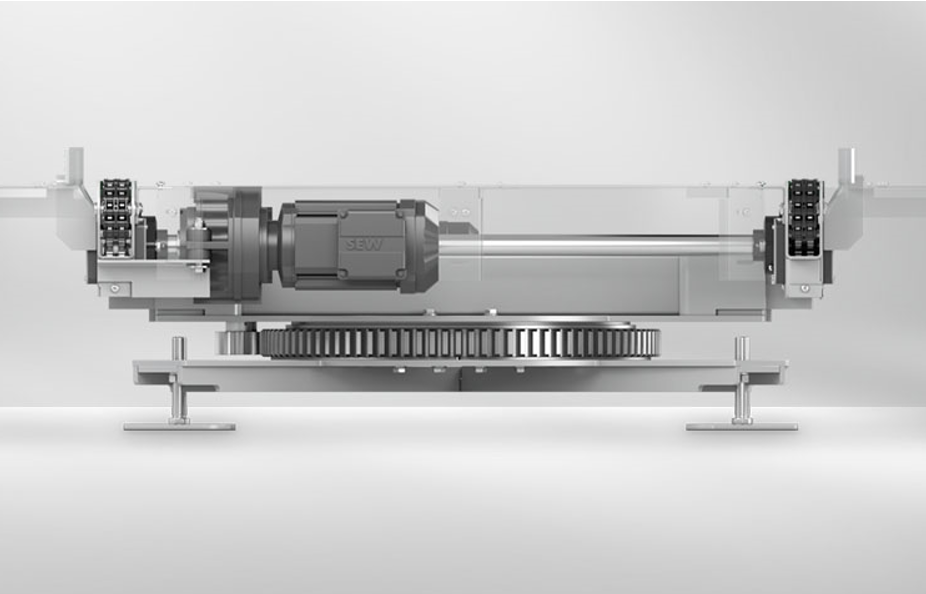

Rotating product turntables are designed to change the orientation or transfer direction of products between conveyor lines. They allow products to be accurately rotated to the required angle before entering the next process, improving automation and production flexibility. These turntables are widely used in assembly, packaging, labeling, and automated handling systems where controlled product positioning is required.

Typical Applications

• Product orientation and positioning
• Conveyor line transfers
• Assembly and packaging systems
• Automated production lines

Key Features

• Smooth and reliable product handling
• Available in manual, conveyor-driven, or motorized versions
• Stainless steel 304 top surface (316 available upon request)
• Compact and low-maintenance design
• Easy integration with conveyor systems
• Custom-built to meet specific application requirements

Technical Specifications

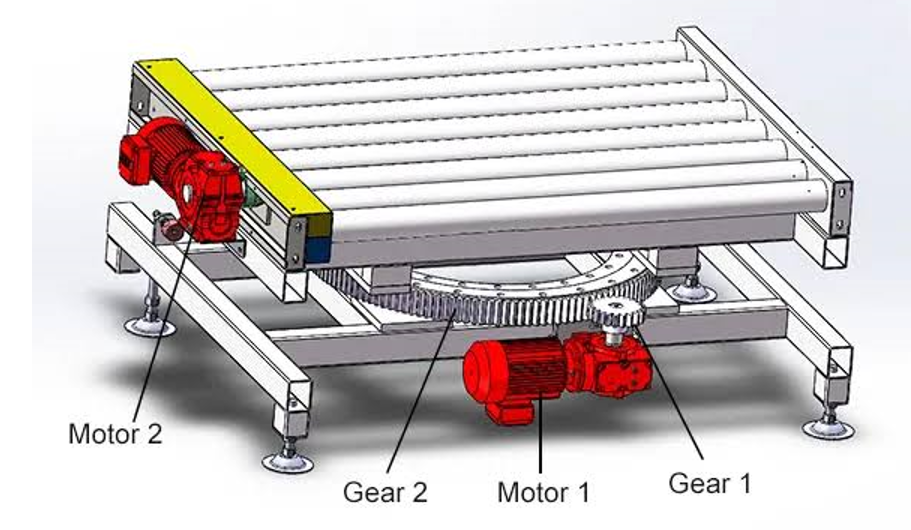

• Drive Options: Manual, conveyor-driven, or electric motor
• Top Surface: Stainless steel 304 (316 optional)
• Frame Structure: Heavy-duty steel construction
• Available Diameters: 300 mm, 400 mm, 600 mm, 1000 mm, and 1200 mm
• Customization: Diameter, height, drive type, rotation direction, and load capacity tailored to customer requirements
