Belt Conveyor
System Diagram

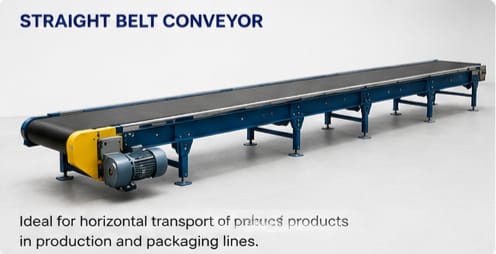

A reliable material handling system designed to transport products and materials smoothly from one point to another using a continuous moving belt. Widely used in factories, warehouses, packaging lines, and production facilities for their efficiency, flexibility, and low maintenance requirements.
The belt is driven by an electric motor through a gearbox, while the pulley system ensures stable movement and proper tension during operation. Configurable for horizontal, inclined, or curved conveying paths.
System Components
Suitable For
Technical Description
Belt Material
PVC, rubber, PU, modular belt, or other materials according to application requirements.
Drive System
Electric motor with gearbox and drive pulley assembly.
Frame Structure
Heavy-duty steel or stainless steel construction.
Support Rollers
Precision rollers designed for smooth belt movement and load support.
Load Capacity
Designed according to product weight and operating conditions.
Speed Control
Adjustable conveyor speed based on process requirements.
Applications

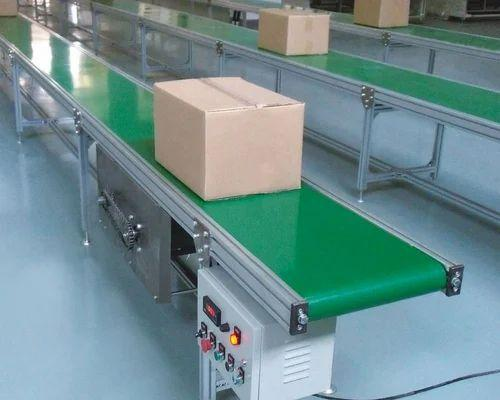

Suitable for packaging lines, assembly systems, food processing, warehouses, and industrial production lines.
Optional Features
* Side guides, flights, cleats, variable speed control, sensors, and automation integration

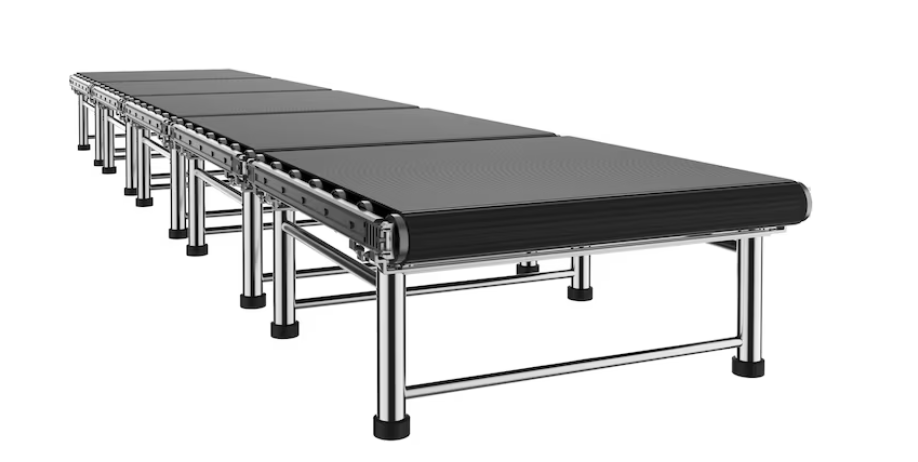

Modular belt conveyors provide a durable, flexible, and low-maintenance solution that enhances productivity and ensures reliable product handling in high-performance industrial operations
